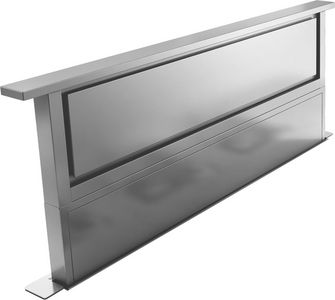

Elica Techne Series Rise 30" Stainless Steel Downdraft Range Hood


Model #:

ERS630S1

Model #: ERS630S1
461181
Elica
$1,699.00

At a Glance

Product Dimensions 14"h x 30"w x 12.5"d

When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica’s Rise is the perfect solution. Rise recesses completely out-of-sight into the countertop (when not in use), but when it’s time to cook, Rise elevates a full 14” above the countertop (almost twice the height of competitors), for added ventilating efficiency. On top of that, Elica added Perimeter Aspiration Technology, which increases suction 35% and actually draws air from the front burner effectively, to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, which is operated by an electronic rotating control that’s flush mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor mounted range.Read More

$1,699.00

What We Offer

Protect Your Purchase

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

Perimeter aspiration - This extraction system is distributed along the entire perimeter of the hood, delivering exceptional efficiency. A concealed panel covers the extraction area, adding a touch of pure elegance to your kitchen hood.

Top performance - Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.

Useful Documents
Specifications

General Specs

Width (in.)30
Height (in.)14
Duct Size (in.)6" Round
Depth (in.)12.5
CollectionTechne Series Rise
ColorStainless Steel
Manufacturer Warranty3 Year Parts & Labor
Color Finish NameStainless Steel
Range Hood TypeDowndraft
ADA CompliantNo
ENERGY STAR CertifiedNo
Outdoor ApprovedNo
Appliance Fit Width (in.)30
Product Weight (lbs.)85.98
Smart CompatibleNo
Maximum CFM600
Grease Filter TypeAluminum Mesh
Sones Rating6.8
Fan Speed Options4
Vent LocationSide
Height Above Cooktop30
Ventilation DirectionDowndraft
Shipping Depth (in.)35
Shipping Width (in.)35
Shipping Height (in.)16.1
Voltage120
Amp3.6
Frequency60
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Overview

Noise (sones)Min: 1.9, Max: 8.0
Duct Transition6” Round with Back Draft Damper (side)
Installation TypeDucted Installation only
Product MaterialStainless Steel
WarningProposition 65 Warning for California Residents
